If you’ve just rebuilt your Spider fuel injectors, you’re probably eager to make sure they work perfectly before putting them back in your car. But how do you know if your rebuild was successful?
Bench testing your injectors is the key step that lets you check their performance safely and accurately. You’ll discover simple, step-by-step methods to bench test your Spider fuel injectors. By the time you finish reading, you’ll have the confidence to verify your work and avoid costly mistakes.
Let’s get your injectors running like new again!
Credit: www.redlineinjectors.com

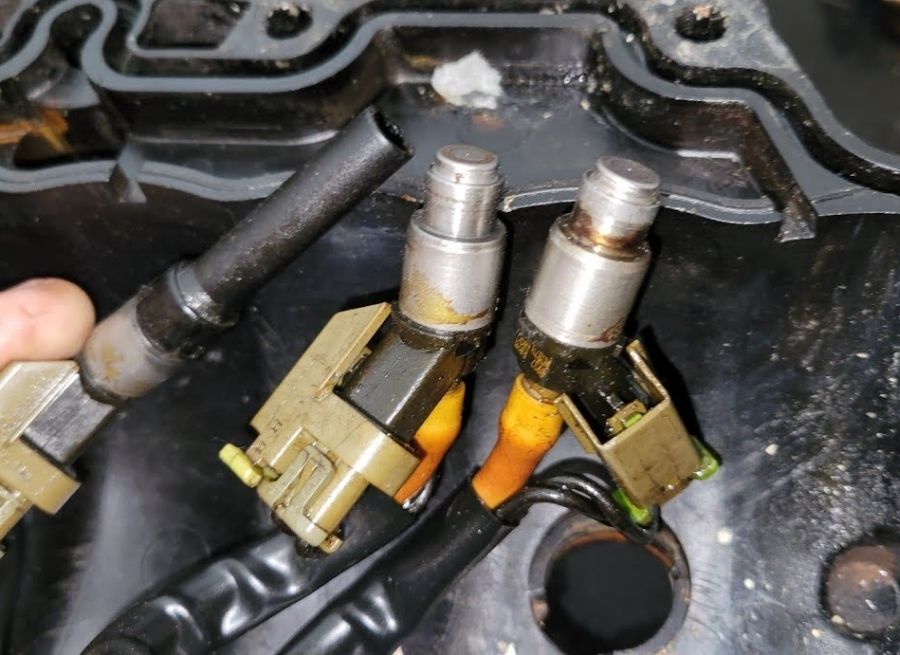

Prepare Testing Equipment
Testing fuel injectors is important after you rebuild them. This ensures they work well and do not leak.
Before starting, get your tools and equipment ready. Proper preparation saves time and keeps you safe.
Gather Necessary Tools
You need specific tools to bench test spider fuel injectors. Having all tools ready helps the process go smoothly.
- Multimeter to check electrical resistance
- 12V power supply or battery pack
- Fuel injector tester or pulse generator
- Small container to catch fuel spray
- Fuel line adapters or connectors
- Clean fuel or testing fluid
Set Up Power Supply
Fuel injectors need power to open and spray fuel. Use a stable 12-volt power source to test them.
Connect the power supply to the injector terminals carefully. This helps simulate real engine conditions during the test.
- Check the voltage output of the power supply
- Use insulated wires to prevent shorts
- Connect the positive and negative leads correctly
- Use a switch or pulse generator for injector activation
Arrange Safety Gear
Working with fuel injectors involves fuel and electricity. Wear safety gear to protect yourself from harm.
Safety gear reduces risk of injury from fuel spray or electrical shock. Always prioritize safety during testing.
- Wear safety glasses to protect your eyes
- Use gloves to avoid skin contact with fuel
- Have a fire extinguisher nearby
- Work in a well-ventilated area
Credit: www.asnu.com

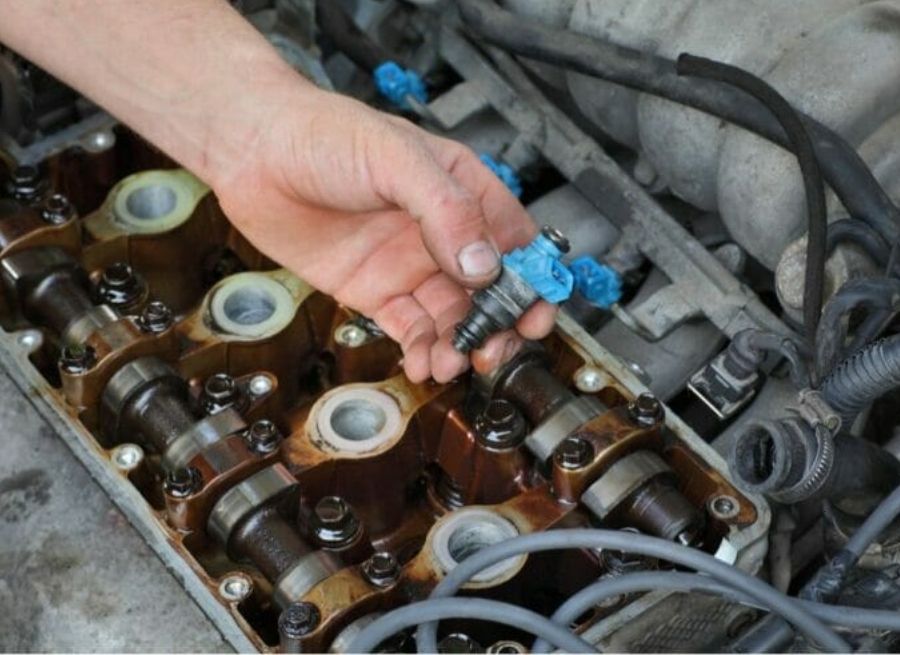

Connect Injector For Testing
Bench testing a Spider fuel injector after a rebuild ensures it works well. Proper connection is key to accurate results.
This guide covers how to connect the injector for testing in three main steps.
Identify Injector Terminals
Fuel injectors usually have two terminals for electrical connection. One is positive, and the other is negative. You must find which is which before testing.
- Look at the injector’s wiring diagram or manual.
- Use a multimeter to check resistance between terminals.
- Mark the positive and negative terminals clearly.
Attach Wiring Correctly
Correct wiring prevents damage and ensures the injector fires properly during the test. Use proper connectors and wires.
| Wire Color | Terminal Type |
| Red | Positive |
| Black | Negative |
Connect the red wire to the positive terminal and the black wire to the negative terminal. Check the connections for tightness.
Secure Injector In Test Bench
Place the injector firmly in the test bench. It should not move during testing. Secure it using clamps or brackets.
- Clean the test bench surface before placing the injector.
- Use rubber pads to avoid damage to the injector body.
- Tighten clamps enough to hold the injector but avoid over-tightening.
Perform Functional Tests
After rebuilding Spider fuel injectors, it is important to test their function. This ensures they work properly before installation.
Functional tests check electrical and fuel delivery performance. Follow these steps carefully for accurate results.
Check Electrical Resistance
Use a multimeter to measure the resistance of the injector coil. This test shows if the coil is intact and not shorted or open.
- Set the multimeter to the ohms (Ω) setting.
- Place the probes on the injector’s electrical terminals.
- Compare the reading to the manufacturer’s specified resistance range.
- A reading outside this range means the injector may be faulty.
Test Injector Spray Pattern
Check how the fuel sprays from the injector nozzle. A good spray pattern ensures even fuel delivery to the engine.
- Connect the injector to a fuel source with proper pressure.
- Pulse the injector electrically to spray fuel.
- Observe the spray for even, fine mist without drips or streams.
- Look for any clogging or irregular spray shapes.
Measure Fuel Flow Rate
Measuring fuel flow rate confirms the injector delivers the correct amount of fuel.
| Test Item | Expected Result |
| Fuel flow per 10 pulses | Check against specs (usually measured in ml) |
| Consistency across injectors | Flow rates should be similar for all injectors |
| Leak test | No fuel drips when injector is off |
Credit: www.alfabb.com
Frequently Asked Questions
How Do I Prepare Spider Fuel Injectors For Bench Testing?
Clean the injectors and ensure all seals are in place. Connect them to a proper power supply.
What Tools Are Needed To Bench Test Rebuilt Injectors?
A fuel injector tester, a power source, and a container for fuel or water are required.
How To Check If Spider Fuel Injectors Spray Correctly?
Look for a fine, even spray pattern without drips or blockages during testing.
What Signs Show A Spider Injector Is Working Well?
Consistent spray, no leaks, and steady operation indicate a good injector.
How Long Should A Bench Test For Fuel Injectors Last?
Run the test for about 30 seconds to one minute to observe proper function.
Conclusion
Testing Spider fuel injectors after a rebuild is simple and important. Check for leaks, spray pattern, and flow rate carefully. A good bench test ensures your injectors work well. It helps avoid engine problems later. Take your time and follow each step.
This keeps your vehicle running smoothly and saves money. Stay patient and practice for better results. Testing right means safer drives and better fuel use. Give your rebuilt injectors the attention they need.
