Is your vehicle struggling to start or running rough? The ignition module might be the culprit.
Knowing how to test the ignition module yourself can save you time and money on repairs. In this guide, you’ll learn simple steps to check if your ignition module is working properly. By the end, you’ll feel confident spotting problems before they cause bigger headaches.
Ready to take control of your vehicle’s performance? Let’s dive in.
Read More : Can You Use A Deep Cycle Battery In A Car? Expert Insights

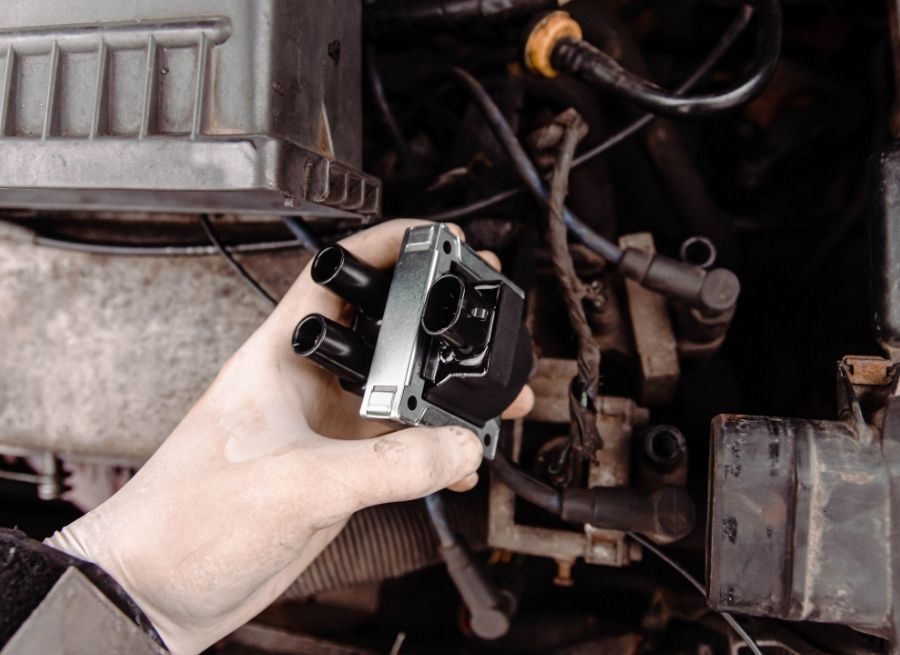

Signs Of A Faulty Ignition Module
The ignition module controls the spark that starts your engine. If it fails, the engine may not work right.
Knowing the signs of a bad ignition module helps you fix your vehicle faster.
Engine Won’t Start
The most common sign is the engine not starting. The ignition module sends spark to the engine. If it fails, no spark means no start.
Engine Stalls Unexpectedly
Your engine may start but stall suddenly. A faulty ignition module can cut spark while driving. This causes the engine to stop working without warning.
Engine Misfires Or Runs Rough
When the ignition module is weak, the engine may misfire. You will hear uneven engine sounds or feel shaking. This happens because spark timing is off.
No Spark At The Spark Plugs
If the ignition module fails, spark plugs do not get spark. This stops the engine from firing. Testing for spark is an easy way to check the module.
Check Engine Light Comes On
The car’s computer may detect ignition problems. This can turn on the check engine light. A diagnostic scan can show if the ignition module is the cause.
Poor Fuel Economy
A bad ignition module can cause incomplete burning of fuel. This lowers fuel efficiency. You may notice more trips to the gas station than usual.
Difficulty Starting In Hot Weather
Ignition modules can fail when hot. You might find it hard to start the car after it heats up. The problem often goes away when the engine cools down.
- Engine fails to start or stalls
- Misfires or rough engine running
- No spark at spark plugs
- Check engine light is on
- Lower fuel economy
- Hard starting in hot weather
Tools Needed For Testing
Testing an ignition module requires specific tools to check its function. Using the right tools helps find problems quickly.
Here are the main tools you need to test an ignition module safely and correctly.
Multimeter
A multimeter measures electrical values like voltage and resistance. It helps check if the ignition module gets power.
Look for continuity and voltage levels to see if the module works well.
- Measures voltage, resistance, and continuity
- Checks module power and ground connections
- Helps find short circuits or open circuits
Test Light
A test light shows if power is present in a circuit. It is easy to use and good for quick checks.
Connect the test light to the ignition system wires to see if power flows to the module.
- Simple tool to detect voltage
- Lights up when power is present
- Good for quick circuit tests
Ignition Module Tester
This tool is designed to test ignition modules directly. It simulates engine signals to check module response.
It gives clear results to show if the module works or needs replacement.
- Specialized tool for ignition modules
- Simulates engine signals
- Shows if the module responds correctly
Screwdrivers And Pliers
You need screwdrivers and pliers to access the ignition module. They help remove covers and disconnect wires safely.
Always use insulated tools to avoid electric shocks while working on the ignition system.
- Remove screws and covers
- Disconnect wires carefully
- Use insulated tools for safety
Step-by-step Testing Process
Testing an ignition module helps find problems in your engine’s ignition system. You can do it with simple tools and clear steps.
This guide shows you how to check the ignition module safely and correctly.
Locate The Ignition Module
First, find the ignition module in your vehicle. It is usually near the distributor or mounted on the engine block. Check your vehicle’s manual for the exact location.
Perform Visual Inspection
Look closely at the ignition module and its wiring. Check for signs of damage or wear. This includes cracks, burns, or loose connections.
- Inspect wires for fraying or breaks
- Look for corrosion on connectors
- Check if the module is securely mounted
- Note any signs of overheating or burns

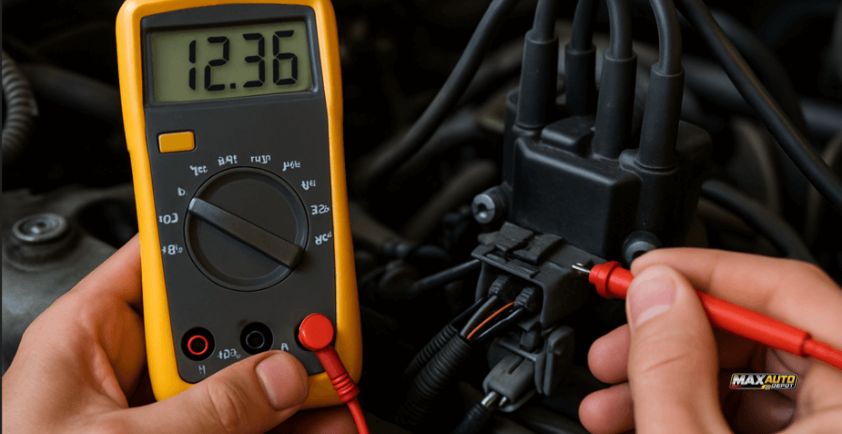

Use A Multimeter For Testing
A multimeter helps measure electrical values. Set it to check resistance or voltage as needed. Follow these steps carefully to avoid damage.
| Test | How to Measure | Expected Result |
|---|---|---|
| Resistance Check | Connect multimeter leads to module terminals | Check manual for correct resistance range |
| Voltage Check | Turn ignition on and test power input | Voltage should match battery voltage |
| Ground Check | Measure continuity between ground terminal and chassis | Continuity should be present |
Check For Spark Output
Test if the ignition module creates a spark. Use a spark tester or remove a spark plug wire. Crank the engine and watch for sparks.
- Connect spark tester to ignition coil output
- Ground the tester properly
- Crank the engine briefly
- Look for a strong, consistent spark
Read More : Can A Bad Alternator Cause Rough Idle? Shocking Truth Revealed!
Troubleshooting Common Issues
Testing an ignition module helps find problems in your vehicle’s ignition system. A bad module can cause engine misfires or no start.
Here are simple ways to check the ignition module and fix common issues you might face.
Check For Visible Damage
Start by inspecting the ignition module closely. Look for cracks, burns, or melted parts on the module’s body.
Damage can cause the module to fail and stop working correctly.
- Remove the ignition module carefully
- Look for physical damage or corrosion
- Check the wiring and connectors for wear
Test With A Multimeter
Use a multimeter to check the ignition module’s electrical parts. This test shows if the module has a short or open circuit.
Follow the vehicle manual to find the correct pins to test on the module.
- Set the multimeter to measure resistance (ohms)
- Connect the probes to the module’s terminals as directed
- Compare the readings with the manual’s specifications
- A very high or low reading means the module may be faulty
Check For Proper Voltage Supply
The ignition module needs the right voltage to work. Check the voltage at the module’s power supply terminal.
Low or no voltage can cause the module to fail or not work well.
- Turn the ignition key to the ON position
- Use a voltmeter to measure voltage at the power terminal
- Voltage should match the battery voltage, usually around 12 volts
- Low voltage means a wiring or fuse problem
Test The Module Output Signal
The ignition module sends signals to the ignition coil. Test if it sends pulses during cranking.
You can use an oscilloscope or a test light for this check.
- Connect the test device to the module’s output terminal
- Crank the engine and watch for signal pulses
- No pulses mean the module is not working
Check For Overheating Issues
Ignition modules can fail if they get too hot. Feel the module’s temperature after the engine runs for a while.
If it is very hot, the module might be overheating and causing problems.
- Allow the engine to run for 10-15 minutes
- Carefully touch the ignition module (avoid burns)
- If very hot, check cooling or replace the module
Read More : How To Use Relay In Logic Pro? : Master Your Audio Workflow Quickly
Frequently Asked Questions
What Tools Do I Need To Test An Ignition Module?
Use a multimeter and a wiring diagram to check voltage and resistance easily.
How Can I Tell If My Ignition Module Is Bad?
Signs include engine misfires, no start, or irregular sparks during ignition.
What Steps Are Involved In Testing An Ignition Module?
Disconnect the module, check resistance with a multimeter, and compare readings to specs.
Can A Faulty Ignition Module Cause Engine Stalling?
Yes, a bad module can cut off spark, causing the engine to stall.
How Often Should I Test Or Replace The Ignition Module?
Test if you face ignition problems; replace every 50,000 miles or as needed.
Conclusion
Testing an ignition module helps keep your engine running well. Use simple tools like a multimeter to check it. Look for clear signs of damage or wear. Following these steps saves time and money on repairs. Stay safe by disconnecting the battery first.
