Are you unsure how to measure a driveshaft correctly? Getting the right measurement is crucial if you want your vehicle to run smoothly and avoid costly mistakes.
Whether you’re replacing a worn-out part or upgrading for better performance, knowing exactly how to measure your driveshaft can save you time and money. You’ll discover simple, step-by-step instructions that anyone can follow. By the end, you’ll feel confident tackling this task yourself—no guesswork needed.
Keep reading to learn the easy way to get precise driveshaft measurements every time.
Credit: drivelinepro.com
Tools Needed For Measurement
Measuring a driveshaft correctly needs the right tools. These tools help you get exact dimensions.
Using precise tools prevents errors when replacing or repairing a driveshaft.
Tape Measure
A tape measure is essential for measuring the total length of the driveshaft. It helps you find the distance between the ends.
Choose a tape measure that is at least 6 feet long and has clear markings.
Caliper
A caliper measures the diameter of the driveshaft tubes and yokes. It gives you accurate width measurements.
Digital calipers are easy to read and provide precise numbers.
Straight Edge Or Ruler
A straight edge or ruler helps check if the driveshaft is straight. It also assists in measuring small parts.
Make sure the tool is rigid and has clear measurement marks.
Marker Or Chalk
You need a marker or chalk to mark points on the driveshaft. This helps when measuring multiple sections or noting key spots.
Use a bright color that stands out on metal surfaces.
Safety Gloves
Wear safety gloves to protect your hands while handling the driveshaft. It prevents cuts and injuries from sharp edges.
Choose gloves that allow good grip and movement.
Credit: www.youtube.com
Measuring Driveshaft Length
Measuring a driveshaft length is important for repairs or replacement. A correct measurement helps ensure the driveshaft fits well.
Using simple tools and clear steps, you can measure the driveshaft length accurately.
Identify Measurement Points
Find the two points where the driveshaft connects to the vehicle. These are the yoke ends on each side.
Measure from the center of one yoke to the center of the other yoke. This is the driveshaft length.
- Locate the front yoke at the transmission or transfer case
- Locate the rear yoke at the differential
- Measure between the center points of these yokes

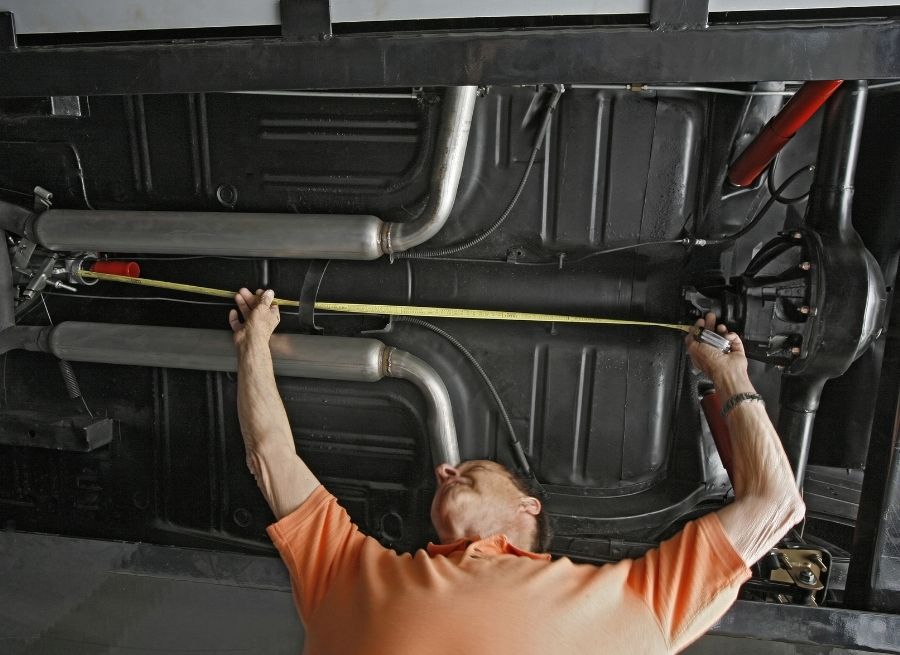

Use Tape Measure Correctly
Use a flexible tape measure for accuracy. Keep it straight and taut along the driveshaft.
Do not bend or curve the tape measure. This will cause wrong length reading.
- Start measuring from the center of the first yoke
- Stretch the tape to the center of the second yoke
- Hold the tape steady to avoid errors
Record Accurate Length
Write down the measurement immediately after taking it. Double check the tape measure reading.
Measure twice to be sure. Small mistakes can cause big fitting problems.
- Note down the length in inches or centimeters
- Repeat the measurement for accuracy
- Compare both measurements before final use
Checking Driveshaft Diameter And Spline Count
Measuring a driveshaft is important to ensure it fits your vehicle. Two key parts to check are the diameter and the spline count.
These measurements help you find the right driveshaft for smooth and safe operation.

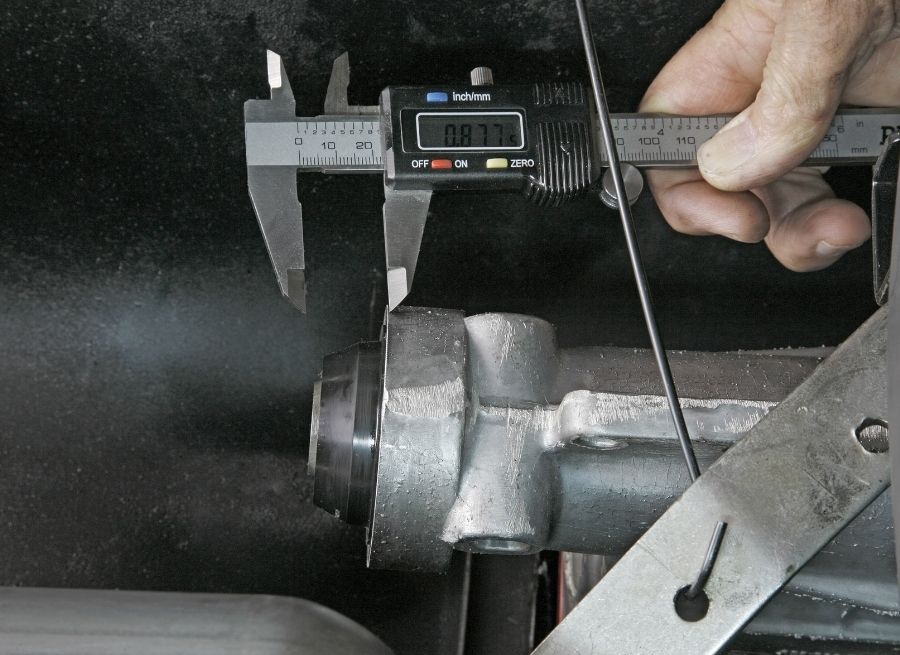

Measure Diameter With Calipers
Use calipers to measure the driveshaft diameter accurately. This tool gives precise readings in millimeters or inches.
Place the calipers around the thickest part of the driveshaft and read the measurement shown.
- Make sure the calipers are clean before measuring
- Measure at several points to confirm consistency
- Write down the diameter for reference
Count And Inspect Splines
Splines are the grooves at the driveshaft ends that connect to other parts. Counting splines helps identify the correct fit.
Look closely at the spline teeth for damage or wear. Damaged splines can cause problems in the drivetrain.
- Count the number of spline teeth carefully
- Check for broken or worn splines
- Compare your count with the vehicle specifications
Credit: difftechnics.com.au
Frequently Asked Questions
What Tools Are Needed To Measure A Driveshaft?
Use a tape measure or caliper for length, and a protractor for angle measurement.
How Do You Measure Driveshaft Length Accurately?
Measure from the center of one yoke to the center of the other yoke.
Why Is Measuring Driveshaft Diameter Important?
Diameter ensures the driveshaft fits well and handles the vehicle’s power safely.
How To Measure The Driveshaft Yoke Size?
Measure the width and thickness of the yoke ears carefully with calipers.
Can Driveshaft Length Affect Vehicle Performance?
Yes, incorrect length can cause vibrations and damage to the drivetrain system.
Conclusion
Measuring a driveshaft is simple with the right steps. Use a tape measure to get the length accurately. Measure from end to end, including the yokes. Double-check your measurements to avoid mistakes. Knowing the correct size helps with repairs and replacements.
Take your time and be precise. This way, your vehicle runs smoothly without issues. Keep these tips handy for any future needs. Accurate measurement saves time and money. Easy and clear—just how it should be.
