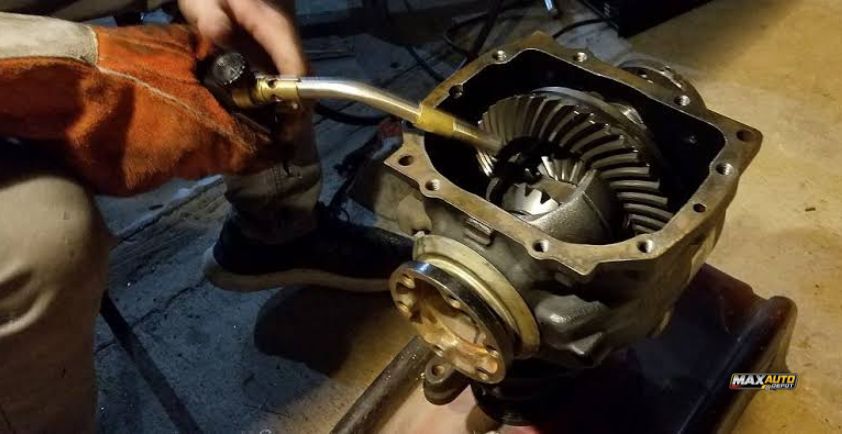

Are you looking to boost your vehicle’s traction and control? Knowing how to weld a differential can make a huge difference, especially if you want more power on the road or off it.
Welding your differential isn’t as complicated as it sounds, and once you understand the steps, you’ll gain confidence to tackle this upgrade yourself. In this guide, you’ll discover simple, clear instructions that will help you transform your car’s performance. Keep reading, and by the end, you’ll be ready to take your driving experience to the next level.
Preparing The Differential
Welding a differential needs careful preparation. This helps ensure a strong, lasting weld.
Start by gathering tools and materials. Then remove the differential cover. Finally, clean and inspect all parts.
Gathering Tools And Materials
Collecting the right tools and materials is key. You will need items for safety and to do the job well.
- Welding machine and wire
- Angle grinder with cutting and grinding discs
- Socket set and wrenches
- Jack and jack stands
- Protective gloves and welding helmet
- Brake cleaner or degreaser
- Shop towels and wire brushes
- New gasket or RTV sealant
Removing The Differential Cover
Removing the cover gives access to the internal parts. This step requires care to avoid damage.
Start by lifting the vehicle safely with a jack. Support it with jack stands. Then remove the bolts holding the cover using a socket set. Pry the cover off gently if needed.
Cleaning And Inspecting Components
Clean parts thoroughly before welding. Dirt and grease can weaken the weld. Inspect all parts for wear or damage.
| Component | What to Check | Cleaning Tips |
|---|---|---|
| Ring gear | Look for cracks or chipped teeth | Use wire brush and brake cleaner |
| Carrier | Check for cracks or metal fatigue | Wipe down and remove old grease |
| Bearings | Spin smoothly without noise | Clean but avoid soaking in solvent |
| Cover gasket surface | Remove old gasket material | Scrape carefully without damaging surface |
Credit: www.weldingweb.com
Welding Process
Welding a differential helps lock the gears for better traction. This process joins the spider gears securely. Proper welding avoids damage and ensures strength.
Follow the right steps to set up your welder and weld the gears. This guide explains each part clearly.
Setting Up The Welder
Start by choosing a welder that works for metal gears. A MIG or TIG welder is best for this job. Set the power to low or medium heat.
Clean the gears well before welding. Remove oil, dirt, and rust. This helps the weld stick better and last longer.
- Use a wire brush or sandpaper to clean metal
- Wear safety gear like gloves and goggles
- Set welder to 70-100 amps for small gears
- Check welding wire or rod for compatibility
Tack Welding The Spider Gears
Tack weld means making small weld spots to hold parts in place. Tack weld the spider gears before full welding. This stops the gears from moving.
Place the gears in the right position. Then apply small weld beads on both sides. Keep the welds short to avoid heat damage.
- Align gears carefully inside the differential
- Apply weld spots about 1/4 inch long
- Weld on opposite sides for balance
- Let metal cool briefly between welds
Completing The Full Weld
After tack welding, fill in the gaps with a full weld. Use a smooth and even motion to join the metal. Avoid too much heat to stop warping.
Make sure the weld covers all edges of the spider gears. Clean the weld area after it cools to check for cracks or weak spots.
- Use steady hand movement for consistent welds
- Fill all joints and gaps completely
- Let the welded parts cool naturally
- Inspect welds and grind rough edges if needed
Reassembly And Testing
After welding the differential, you must put it back together correctly. This part is important to make sure the differential works well.
Testing the differential after reassembly helps find any problems early. Follow these steps to finish the job right.
Reinstalling The Differential Cover
Clean the differential cover and housing before reinstalling. Remove old gasket material to avoid leaks.
Apply a new gasket or sealant to the cover. Then, bolt the cover back onto the housing evenly to prevent warping.
- Use a proper gasket or sealant
- Tighten bolts in a crisscross pattern
- Check the cover for a tight fit
Refilling Gear Oil
Use the recommended gear oil type for your vehicle. Filling the differential with clean oil helps it work smoothly.
Pour gear oil into the fill hole until it reaches the correct level. Do not overfill or underfill the differential.
- Check your vehicle manual for oil type
- Fill oil slowly to avoid spills
- Replace the fill plug securely after filling
Performing A Test Drive
Drive the vehicle slowly at first to listen for noises. This helps catch any problems caused by welding or reassembly.
Check for leaks under the vehicle after driving. Make sure the differential works smoothly without unusual sounds.
- Start with low speeds
- Listen for grinding or clunking sounds
- Inspect for oil leaks after the drive
- Test turns to feel for smooth operation
Credit: www.driftworks.com
Credit: www.youtube.com
Frequently Asked Questions
What Is Welding A Differential And Why Is It Done?
Welding a differential locks the gears together to make both wheels turn at the same speed. This helps in better traction on rough roads.
What Tools Are Needed To Weld A Differential?
You need a welder, safety gear, jack stands, and basic hand tools like wrenches and sockets.
How Long Does It Take To Weld A Differential?
Welding a differential usually takes 1 to 3 hours depending on your skill and tools.
Is Welding A Differential Safe For Everyday Driving?
Welded differentials can cause tire wear and hard turns, so they are better for off-road or racing.
Can Welding A Differential Damage My Vehicle?
If done incorrectly, welding can weaken parts or cause gear damage, so proper technique is important.
Conclusion
Welding a differential takes care and attention. Follow each step slowly and carefully. Use the right tools to get good results. Check your work often to avoid mistakes. Safety matters most; always wear proper gear. Practice on old parts before working on your car.
This helps you learn without risk. A well-welded differential improves your vehicle’s performance. Take your time, and don’t rush the job. You will feel proud when it works well. Keep learning and improving your skills over time.
